AFV AC Source
AFV: Programmable Full-Featured AC Source
Intepro Systems in conjunction with Preen offers a programmable AC source with power ratings up to 2MVA
Deprecated: Creation of dynamic property HelixUltimateFeatureLogo::$position is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/logo.php on line 40
Deprecated: Creation of dynamic property HelixUltimateFeatureLogo::$load_pos is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/logo.php on line 41
Deprecated: Creation of dynamic property HelixUltimateFeatureMenu::$position is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/menu.php on line 41
Deprecated: Creation of dynamic property HelixUltimateFeatureMenu::$load_pos is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/menu.php on line 42
Deprecated: Creation of dynamic property HelixUltimateFeatureSocial::$position is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/social.php on line 36
Deprecated: Creation of dynamic property HelixUltimateFeatureSocial::$load_pos is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/social.php on line 37
Deprecated: Creation of dynamic property HelixUltimateFeatureContact::$position is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/contact.php on line 36
Deprecated: Creation of dynamic property HelixUltimateFeatureContact::$load_pos is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/contact.php on line 37
Deprecated: Creation of dynamic property HelixUltimateFeatureFooter::$position is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/footer.php on line 29
Deprecated: Creation of dynamic property HelixUltimateFeatureFooter::$load_pos is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/footer.php on line 30
Deprecated: Creation of dynamic property HelixUltimateFeatureLogo::$position is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/logo.php on line 40
Deprecated: Creation of dynamic property HelixUltimateFeatureLogo::$load_pos is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/logo.php on line 41
Deprecated: Creation of dynamic property HelixUltimateFeatureMenu::$position is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/menu.php on line 41
Deprecated: Creation of dynamic property HelixUltimateFeatureMenu::$load_pos is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/menu.php on line 42
Deprecated: Creation of dynamic property HelixUltimateFeatureSocial::$position is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/social.php on line 36
Deprecated: Creation of dynamic property HelixUltimateFeatureSocial::$load_pos is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/social.php on line 37
Deprecated: Creation of dynamic property HelixUltimateFeatureTitle::$position is deprecated in /home/inteprofuturismd/public_html/templates/pitech/features/title.php on line 36

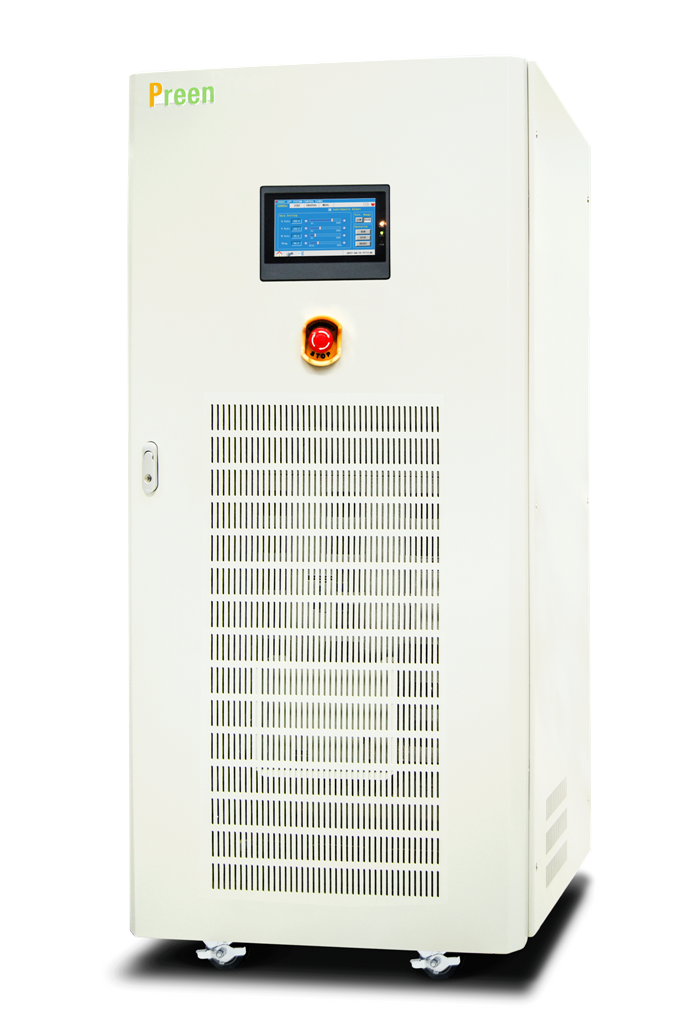

AFV AC Source
Achieving this high power paired with its advanced features make the AFV an ideal solution for R&D and compliance testing. The AFV offers a comprehensive protection scheme including: OVP, UVP, OCP, OPP, OTP and SCP. The AFV series employs an impressive touchscreen display that allows for complete local operation. Users can also achieve control via the included standard RS-485 interface or optional RS-232/GPIB.
User Manuals & Datasheet
Manuals & Datasheets
Features
Key Features of the AFV AC Source products
Output Power
10kVA -2MVA
Efficiency
is 85% to 90%
Three Phase
Independent Control
STEP and GRADUAL
Features
Request a quote today
Experience. Worldwide Support. Implementation and Setup.

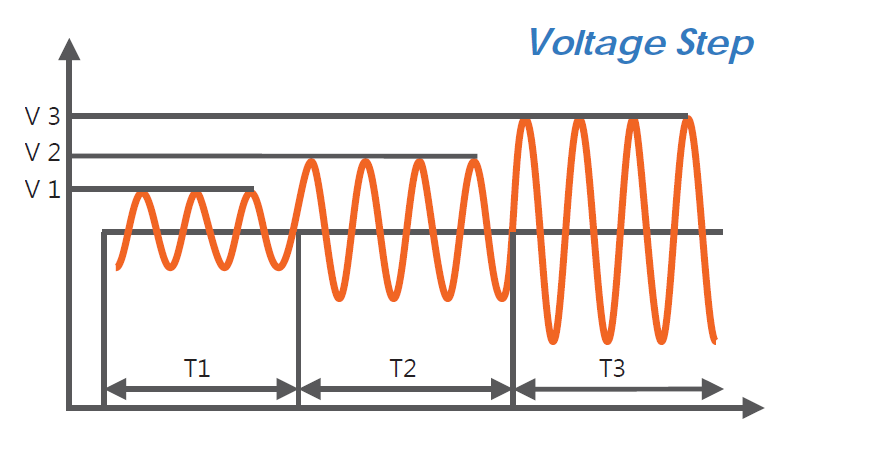

Step
STEP feature

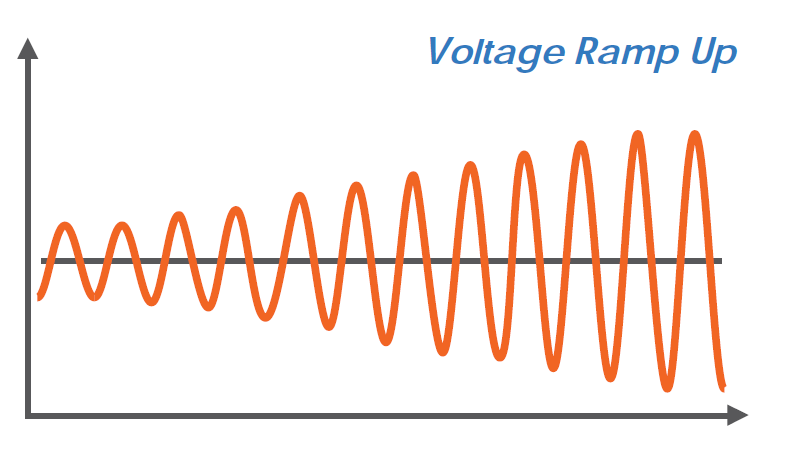

Gradual
GRADUAL fature
AFV AC Source
Model Comparison
Model Series
PAS
AFV
General Mode
Standard
Standard
Step Mode
Standard
Standard
Gradual Mode
Standard
Standard
Soft Start Function
Optional
Optional
Three-phase independent adjustment
Standard
Optional
Phase angle setting
Standard
Optional
Low Voltage Ride Through (LVRT)
Standard
Not Available
Regenerative Function
Standard
Not Available
